Concrete Screeds – Duoscreeds

Concrete Screeds - Duoscreeds

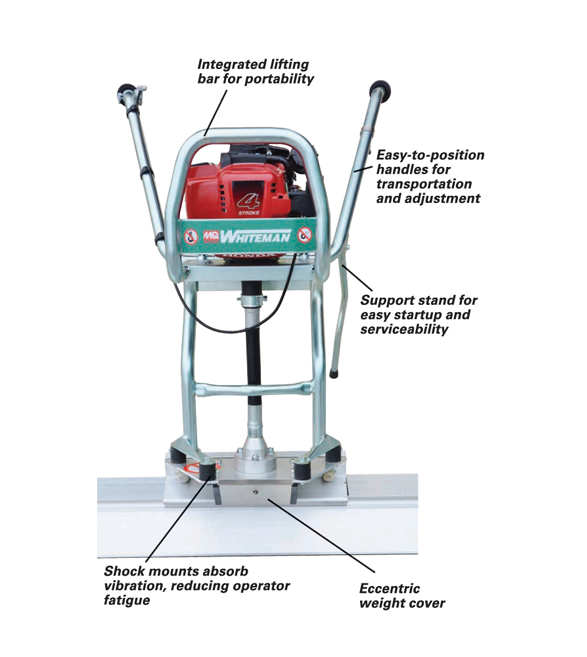

The DuoScreed™ sports a unique blade profile that enables just one operator to quickly and accurately strike off concrete floors using a single blade for both form-to-form or wet screeding applications. The screed’s vibratory action embeds aggregate and reduces air voids, producing a strong, dense slab, while eliminating the strenuous, time-consuming labour of manual screeding.

  • Simple but durable power unit utilizes a maintenance-free flexible drive shaft design.
  • Powered by a 1.5HP Honda GX35 4-stroke gasoline engine.
  • Control handle is adjustable to operator height and sports a convenient fingertip throttle control.
  • Easily manoeuvre around obstructions without marring slab surface.
  • Unique light-weight blade design (about 2.5kg per lineal metre) requires no tools to remove and is ideal for form-to-form or wet screeding.
  • While the unit is in the stand-alone position, adjust the handles to waist height to utilize the form to form side of the blade.
  • While the unit is in the stand-alone position, simply lower the operator handle to knee level to use the wet screed side of the blade.
  • Blade sizes available in lengths from 6 to 16 feet (1.8 to 4.8 meters).
  • Excitor weight is quickly and easily adjustable for different blade lengths, no tooling required.
  • Adjustable operator’s handle – position handle at waist height to utilise the form-to-form edge. Position handle at knee height before lifting to utilise wet screed edge.

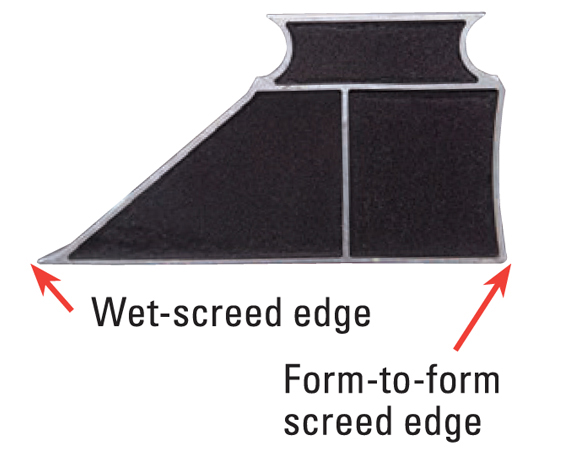

Extruded Aluminium blade features a design that easily clamps on the power unit with no tools required.

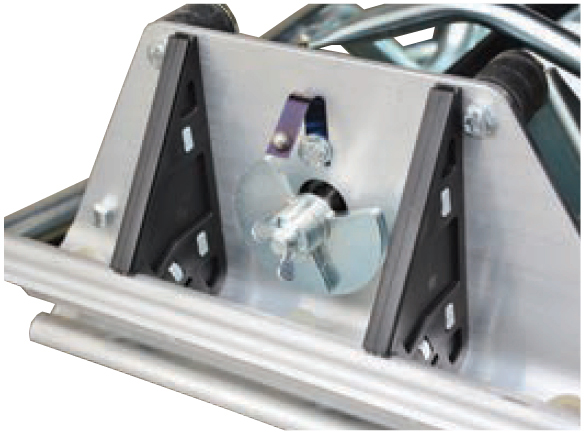

Eccentric weight cover requires no tools to remove. Weights adjust for larger or smaller blades.


Model Blade Widths(ft) Blade Constructions Engine HP(kW) Drive System Power Unit Weight
DSGPULW 6,8,10,12,14,16 Aluminium Honda GX-35SAT 1.3(1.0) Flexible shaft 32lb.
