Whiteman Walk Behind power trowels year after year are the number one choice of the concrete industry. With over 70 years of engineering experience no other manufacturer can match Whiteman’s quality, reliability or performance.

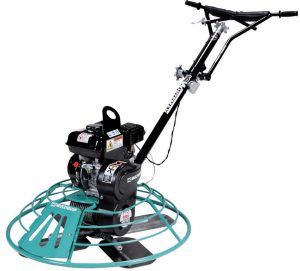

B-Series
46’ (1170mm) Width
High horsepower engines and excellent rotor coverage have made this trowel the favourite of concrete contractors for generations.

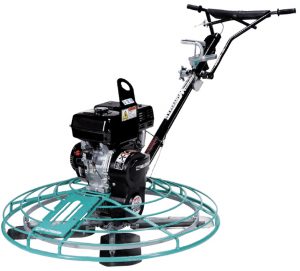

J-series
36” (914mm) Width
Available with a high-speed option for burnishing this versatile trowel is ideal for residential and general construction work.

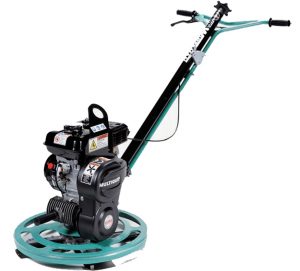

C-series
24” (1219mm) Width
Features a rotating guard ring to reduce manual labour while edging. It enables the operator to finish within 5 mm of obstructions. The high capacity gearbox delivers big machine performance in a small package.

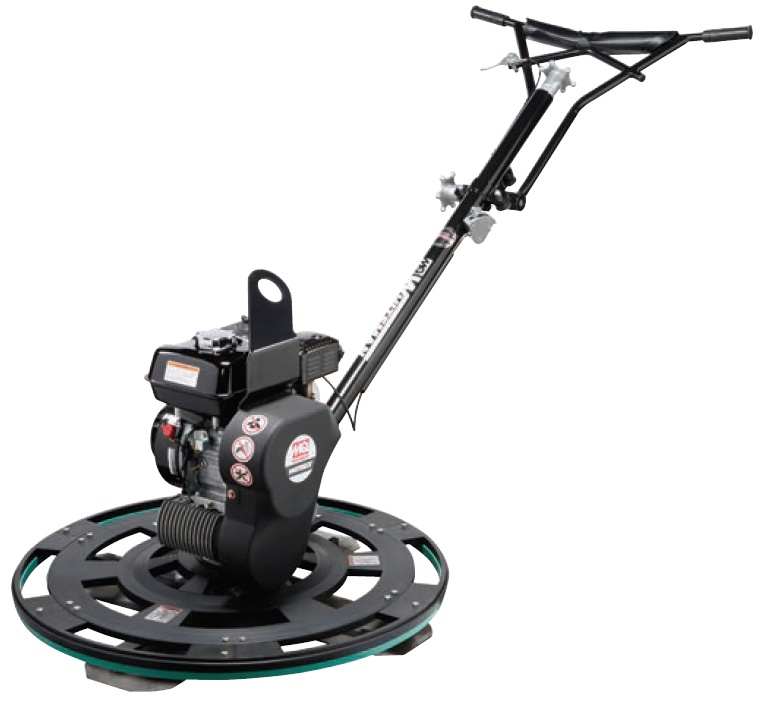

J3036H55 (New Model)
- Honda GX 160.
- 60-115 RPM.
- Centrifugal clutch.
- Easily converts from 36” to 30” edger by removing outer ring sections. Comes completely assembled in the 36” configuration. Additional blades for 30” conversion shipped as well.
Features
Top quality components. Concrete contractors demand reliable equipment to get the job done right.

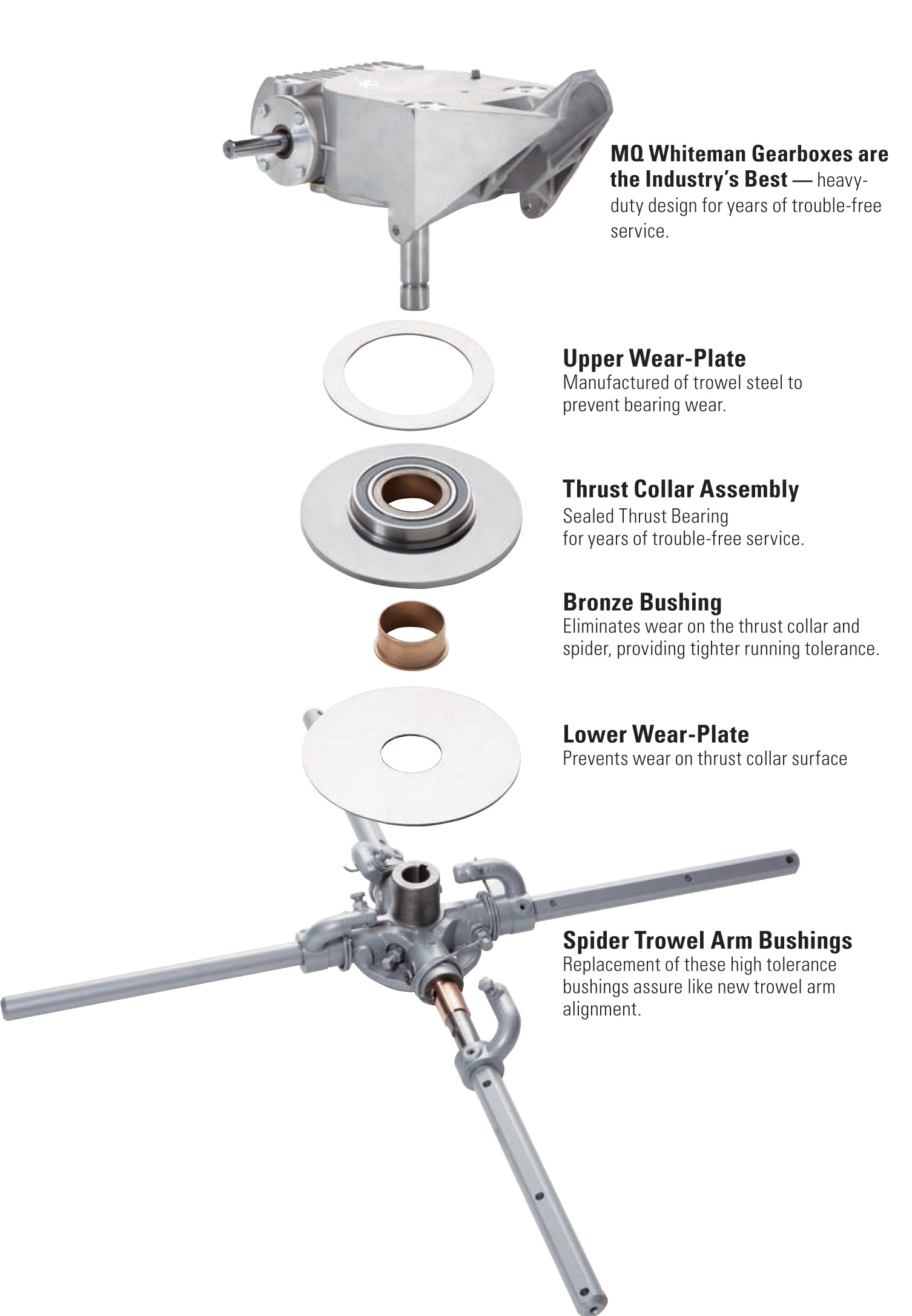

The MQ Whiteman gearbox uses a heat-treated worm gear and composite bronze gear to ensure that your machine isn’t sidelined during a critical job.
Routine maintenance is simple and economical. Our spider assembly uses high-strength wear plates made of trowel steel to prevent wear on key components. Repairing your trowel shouldn’t be costly so we make certain our replacement parts are priced right.

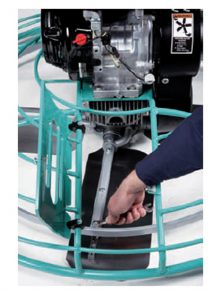

Access panel for quick and easy servicing of trowel arms and blades. Get a grip on the best. Our new anti-vibration handle design dramatically reduces the vibration transmitted to the operator. These height-adjustable handles will increase operator comfort and decrease fatigue over an eight hour day. This feature is standard knob handle. Unless otherwise specified, handles are sold separately.
QXH-Series

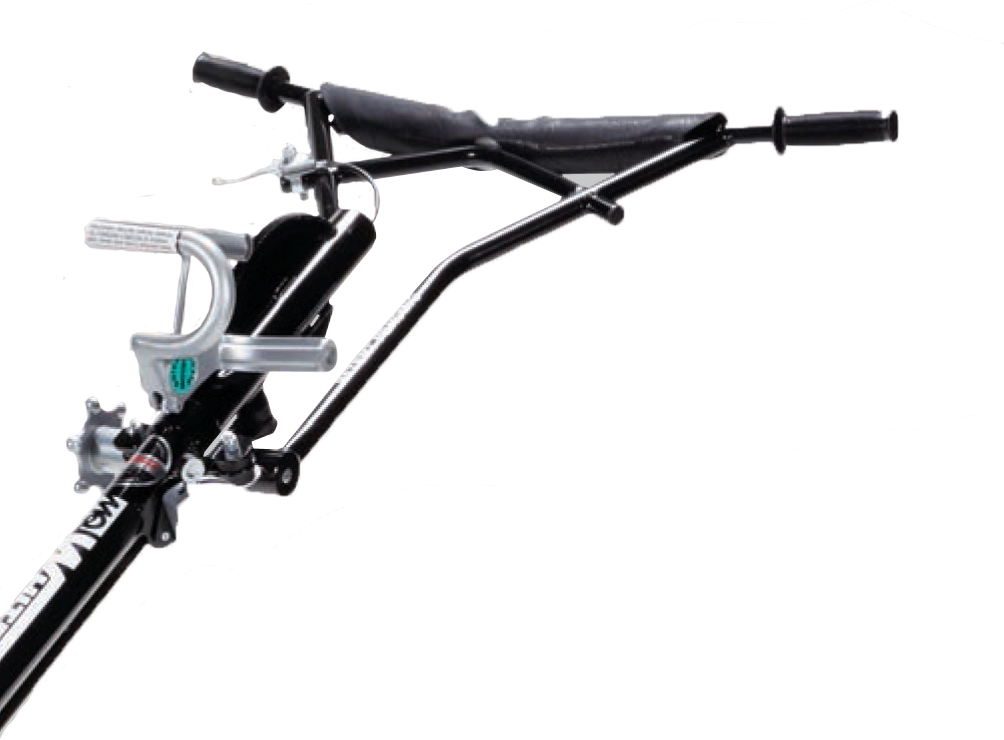

QuickPitchTM handle
A patented spring-loaded design enables the operator to react rapidly to changing concrete conditions. Blade pitch is increased or decreased in 1/8” increments by moving the latching lever back and forth.
SXH-Series

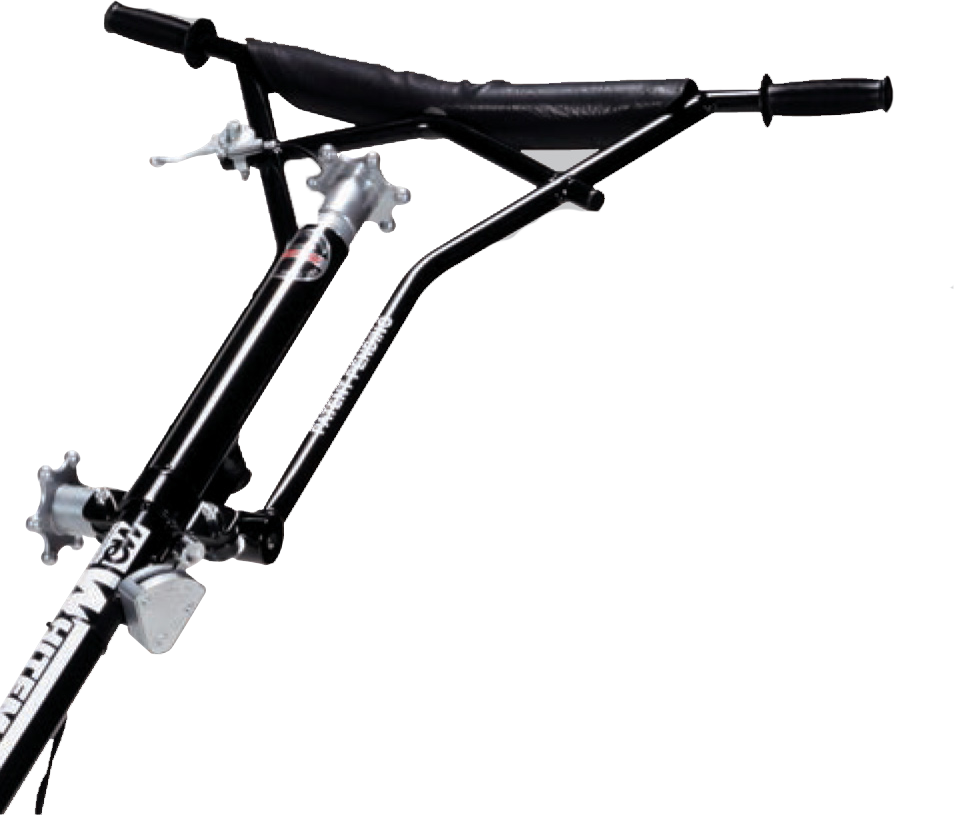

Standard handle
A Favourite of contractors who prefer to have infinite blade pitch control. The large knob makes it easy to increase or decrease blade pitch to the desired angle.
Specifications
| Model | HP(kw)* | Motor | Clutch | RPM | Operating Weight lb.(kg) | Shipping Weight lb.(kg) | Handle Options (see below) |
|---|---|---|---|---|---|---|---|
| C-Series-24-inch (610mm) Rotating Guard Ring | |||||||
| CA4HC | 3.5(2.6) | Honda | Centrifugal | 70-130 | 171(77.5) | 188(85.2) | STHAC;QPHAFC |
| J-Series-36-inch (914mm) Guard Ring | |||||||
| J3036H55 (New Model) | 4.8(3.6) | Honda | Centrifugal | 60-115 | 180(81) | 178(80) | SXH;QXH; |
| J36H55 | 4.8(3.6) | Honda | Centrifugal | 60-115 | 184(83.4) | 182(82.5) | SXH;QXH;SXHP;QXHP; |
| J36H90H | 8(6.0) | Honda | Centrifugal | 90-155 | 209(94.8) | 207(93.8) | |
| B-Series-46-inch (1170mm) Guard Ring | |||||||
| B46H90 | 8(6.0) | Honda | Centrifugal | 60-130 | 277(125.6) | 285(129.2) | SXH;QXH;SXHP;QXHP; |
| B46H11H | 9.5(7.1) | Honda | Centrifugal | 90-155 | 277(125.6) | 285(129.2) | |
